Sonosite LX | FUJIFILM Sonosite

Benefits

Sonosite Voice Assist lets you control key commands - hands-free allowing you to control the system from across the bed all while maintaining a clean or sterile environment

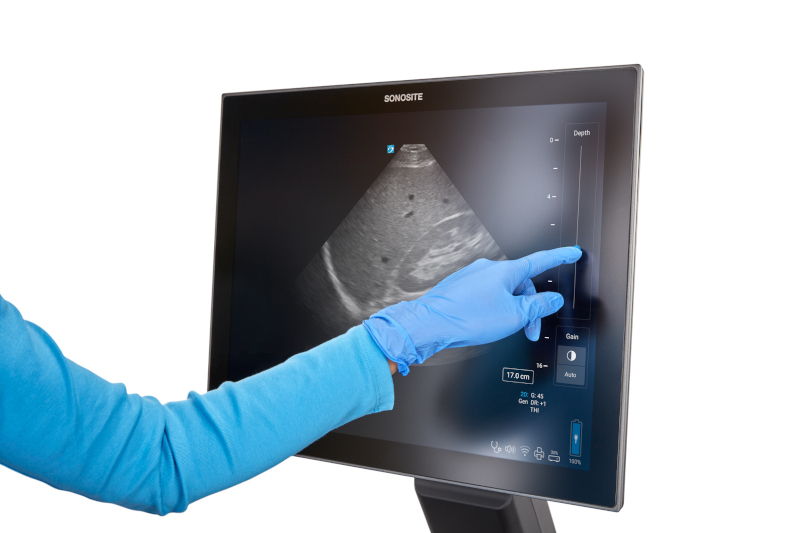

Advanced image clarity on a large, adaptable clinical display for easy viewing with clinical team members and consultation with patients
Intergrate cardiac and lung assessments seamlessly with the T8-3 transesophageal transducer, including industry-first cardiac resuscitation and lung exam types

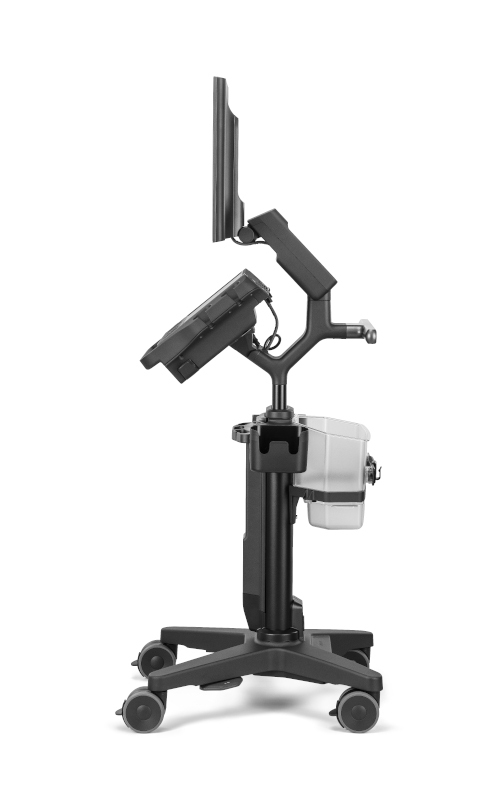

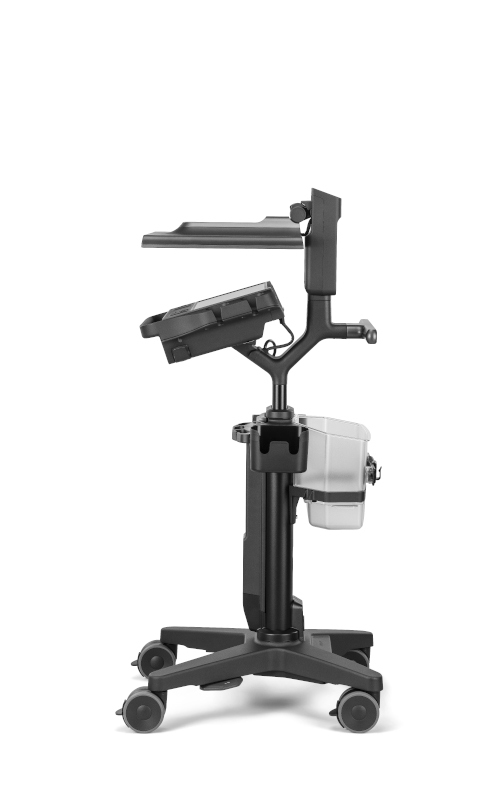

A small footprint, rotating and extending display, and vertically adjustable control panel to gain optimal bedside access

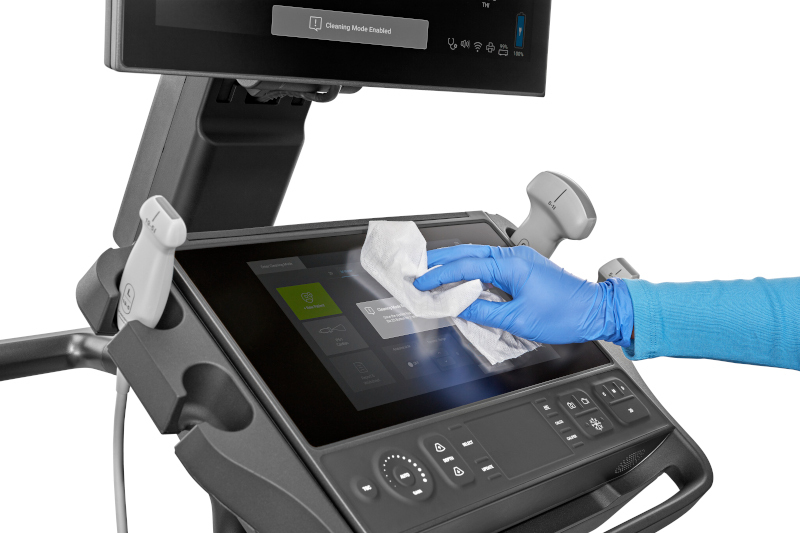

Cleaning Mode to improve ease of infection control between procedures

Download the Sonosite LX product brochure

https://www.youtube.com/watch?v=0UHLszLTyWI

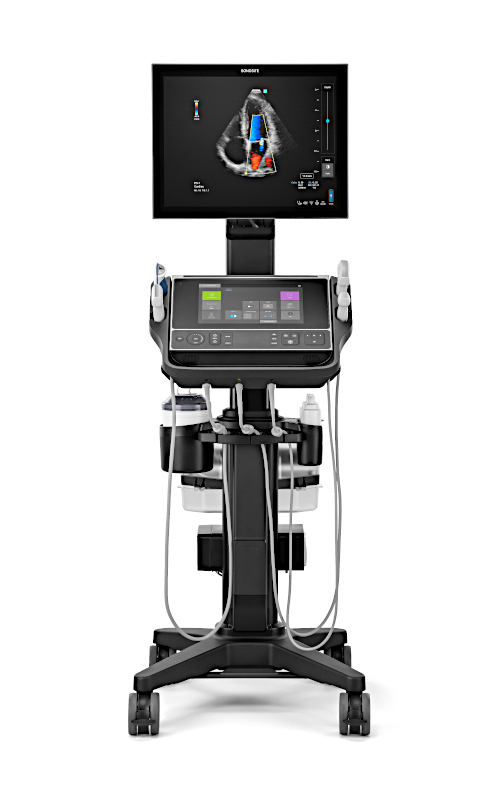

Where Form Meets Function

Outstanding Image Quality

Better vision, deeper understanding. Sonosite LX redefines a new standard of image performance to meet the needs of the most challenging clinical practices.

Important Information

Transducers

Model	Transducer type	Frequency	Scan Depth	Exam Types

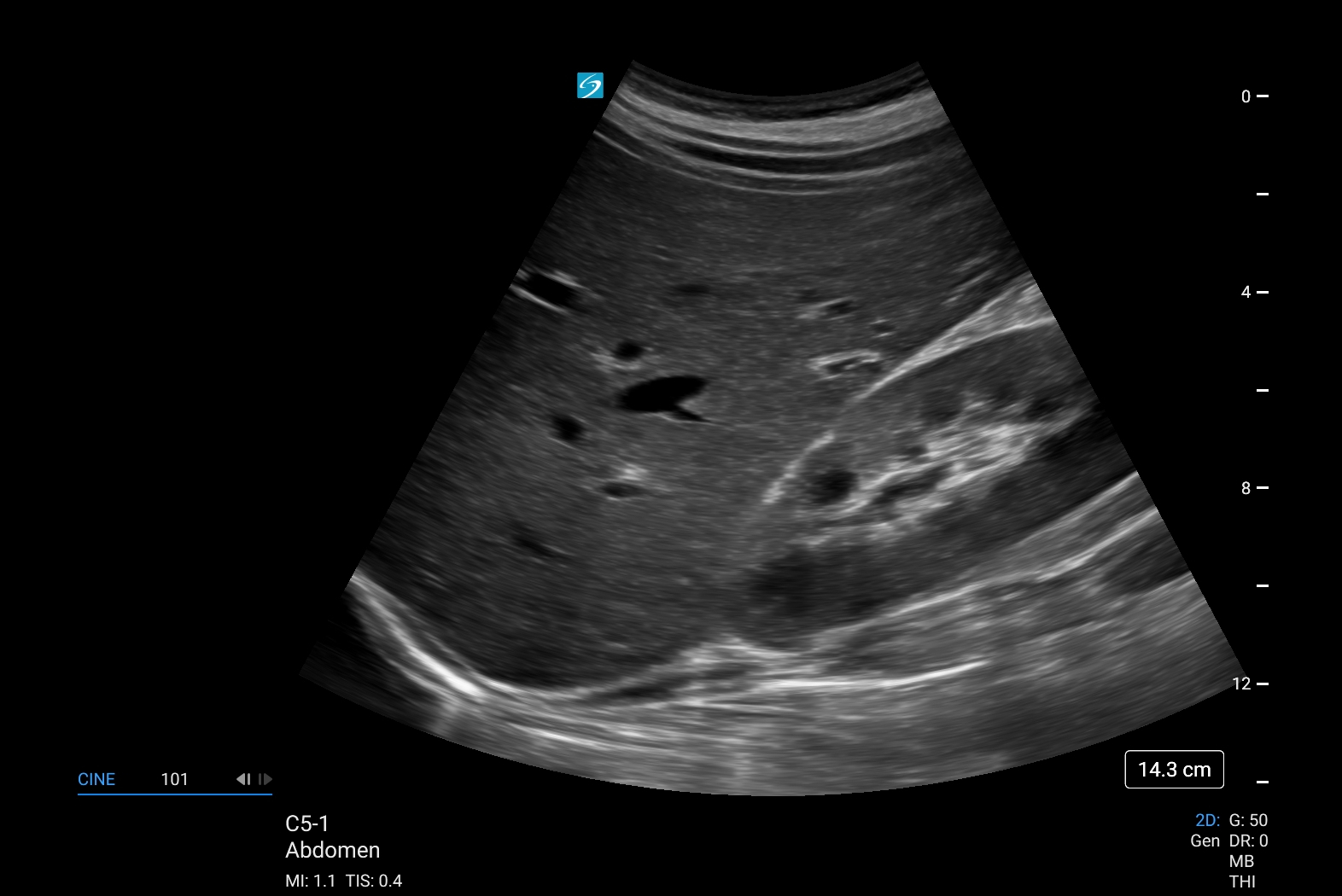

C5-1 Ultrasound Transducer	Curvilinear	5-1 MHz	4.7 - 30 cm	Abdominal, Gynecology, Lung, MSK, Nerve, Obstetrics, Spine, VExUS

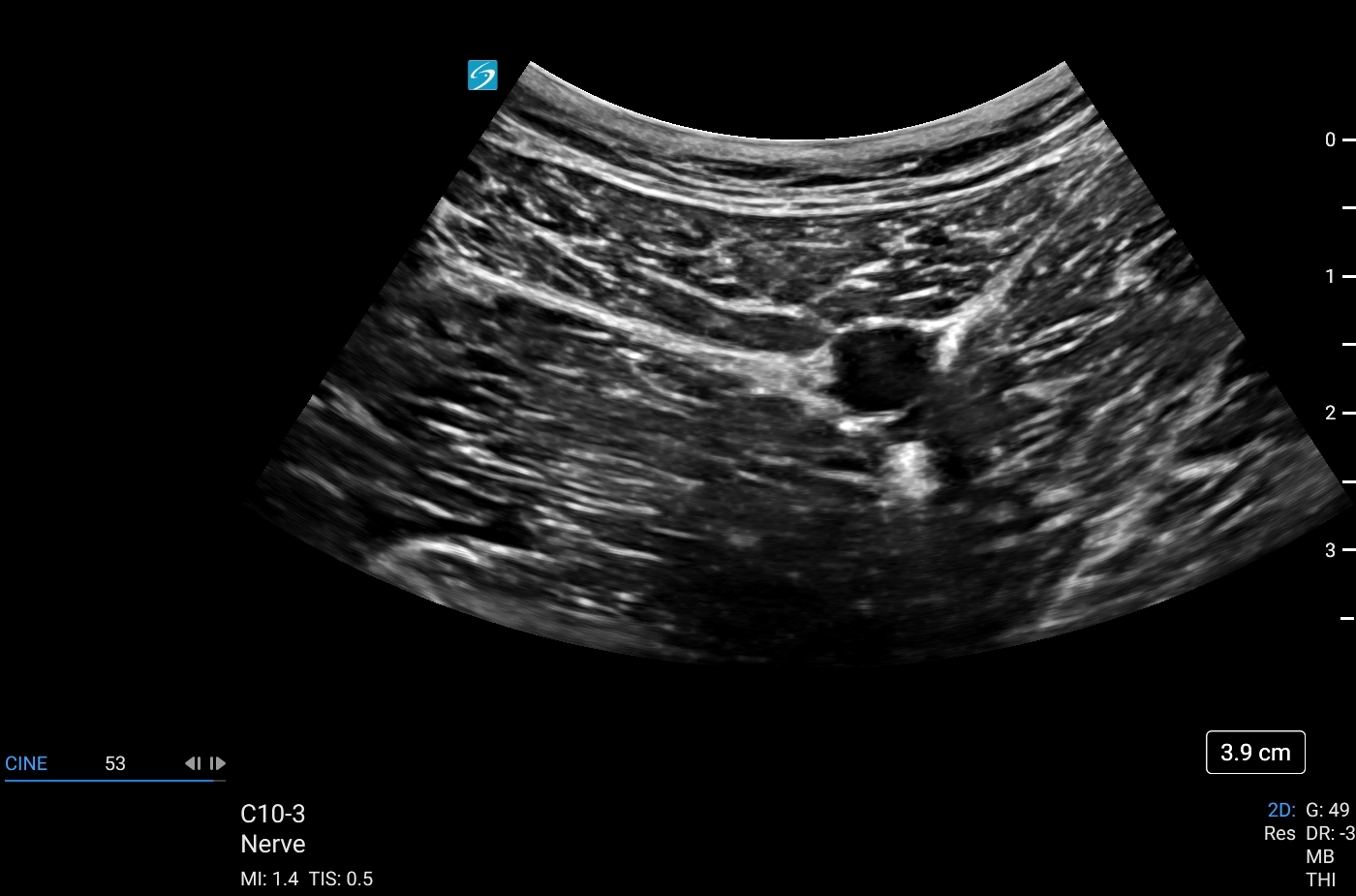

C10-3	Curvilinear	10-3 MHz	3-18 cm	Abdominal, Gynecology, Lung, MSK, Nerve, Spine, VExUS
IC10-3 Ultrasound Transducer	Curvilinear, Special Use	10-3 MHz	3 - 15 cm	Gynecology, Obstetrics, Prostate
L12-3 Ultrasound Transducer	Linear	12-3 MHz	1.5 - 9 cm	Arterial, Breast, Carotid, Lung, MSK, Opthalmic, PIV, Superficial, Venous
L13-6 Ultrasound Transducer	Linear	13-6MHz	1-6 cm	MSK, PIV, Superficial, Venous
L15-4 Ultrasound Transducer	Linear	15-4 MHz	1.5 - 6 cm	Arterial, Breast, Carotid, MSK, Nerve, Superficial, Venous
L19-5 Ultrasound Transducer	Linear	19-5 MHz	1 - 6 cm	Arterial, Lung, MSK, Nerve, Opthalmic, PIV, Superficial, Venous
P5-1	Phased Array	5-1 MHz	5 - 35 cm	Abdominal, Cardiology, Lung, Obstetrics, Orbital, TCD, VExUS
P11-3	Phased Array	11-3MHz	2 - 15 cm	Neonatal Abdominal, Neonatal Cardiac, Neonatal Cephalic, Neonatal Lung, Pediatric Abdominal, Pediatric Cardiac, Pediatric Lung
Sonosite UHF 46-20	Linear	46–20MHz	4mm–30mm	Superficial, Vascular
T8-3 Ultrasound Transducer	Phased Array, Special Use	8-3 MHz	4-18 cm	Cardiac, Cardiac Resuscitation, Lung

Data Security

FUJIFILM Sonosite is focused on providing point-of-care ultrasound solutions that are protected against potential security breaches. We continuously monitor for vulnerabilities that pose potential cybersecurity risks to system safety and data confidentiality. Sonosite LX includes a robust set of security features.

FIPS199, FIPS200, and NIST 800-53 compliant
Secure boot-up
Setup wizard allows administrators to configure security requirements
User and role-based authentication
LDAP support
Complex password rules support
Federal System Use notification support
Emergency mode support
Secure DICOM
Data encryption for stored and in-transit data
System-wide white-listing
Hardened OS and services
System firewall

Warranty

Sonosite offers an industry-leading, 5-year standard warranty on most ultrasound systems and Sonosite manufactured transducers to ensure your equipment is protected. Learn More.

Education

Included with each Sonosite product purchase is exclusive access to Sonosite Institute, our web-based educational portal. Take advantage of point-of-care ultrasound tools and resources that can help you become a more efficient POCUS provider.
